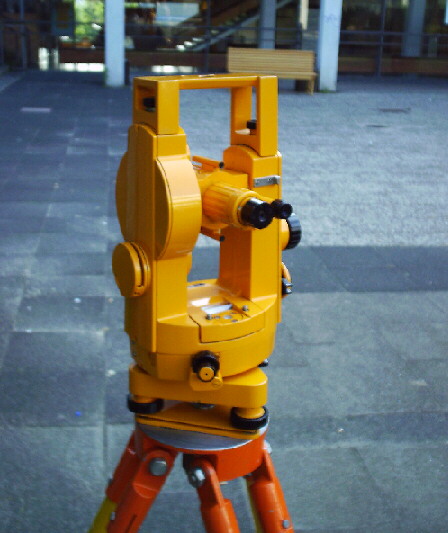

Theo
015B
 | Manufacturer: 1990 1994 | Jenoptik
Jena GmbH,
DDR-6900 Carl Zeiss 73446 Oberkochen |
| Service/Distribution 1990 1994 | Werner
Jähnert GmbH, D-3400 Göttingen Carl Zeiss und Fachhandel | |
|
Reading feature
The
horizontal circle will be reading of with 134,318 gon, after the circle
bar is between the double bar.
|
Price without added value tax (most
expensive) 1990 1994 | 6.300,- DM 7.470,- DM |
| Telescope - picture upright - lens aperture - enlargement - shortest distance to read - telescope length - inclination area - double sided - axis heighness | yes 40 mm 30times 1,5 177 mm 0-158 gon und 233-400 gon yes 224 mm |
|
| Horizontal-circle - diameter - reading type - smallest reading - estimation | 94 mm optical mikrometer 2 mgon 0,2 mgon | |
| Vertical-circle - diameter - reading type - smallest type - estimation | 94 mm optical mikrometer 2 mgon 0,2 mgon |
|
 | automatic heightindex
(compensator) action area level specification | yes +/- 4' 30'' (tube level) 8' (circular level) |
| Type forced
centering | DIN
18719 insertion spigot or 3 spigot
system | |
| Weight | 4,8 kg | |
|

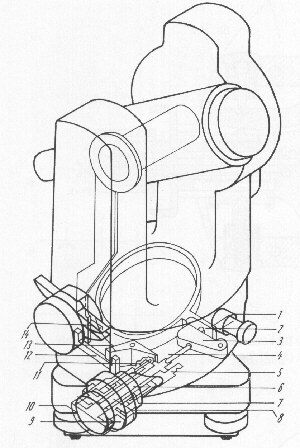

1 helical compression 2 fixing arm spring 3 ratio lever 4 swing-pen 5 case 6 threaded spindle 7 nut for height 8 impulse button 9 knob for slow-motion-screw 10 knob (S) 11 swing-pen 12 swing lever 13 angle lever (height feinted) 14 compressing spring | standard
deviation (average error of a direction measurement ) one time in 2 telescope faces a) horizontal b) vertical | a) 0,8 mgon/2,5'' b) 0,8 mgon/2,5'' |
| specializing | Digtized reading with different colour
for asimuth- circle and vertical- circle, coarse impulse and subtle
impulse, for circle feint and focusing, optical plumb bob focusable,
for bus brine measurement suitably, noumerous complement |
