Tilting Level (Engineer's Level) NK1

The Wild NK1:

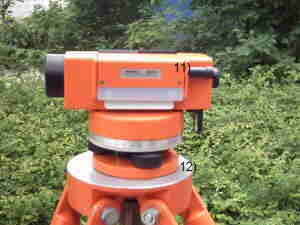

 Foto 2

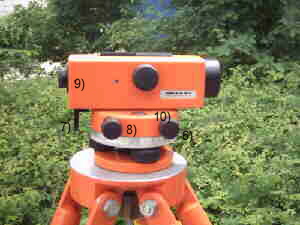

    foto 1          foto

1. : horizontal-civele
2. : Focusing screw
3. : surliest with centre notch
4. : objective lens
5. : leveling screw
6. : transit screw
7. : reading magniflying glass
8. : vertical screw
9: telescope eyepiece
10. : circular level
11. : eyepiece for dragonfly
12. : bottom plate

technical data of the NK1/N1

appelation of the device
Tilting Level NK1 (Engineer`s Level)
Wild Heerburg AG
CH-9435 Heerburg
Gebr. Wichmann KG.
price without value-added tax
945,- DM
- picture upright
-lens aperture
- augment
- shortest target wideness
- telescope longth
- diameter for the eye m/100 m

30 mm
0,7 m
180 mm
3,6 m
HZ- circle
- diameter
- reading kust
- finest reading
- estimate

100 mm
1 gon
0,1 gon
compensator yes/ No
function area of bubble data

8` ( circular level )
60`` ( level dragonfly )
1,8 kg
standard deviation ( medial mistake ) of 1-km-double level
a) without parallel-plate
b) with parallel-plate

2,5 mm
vertical screw and coincidence bubble, bubble stilt for turn mind
the vertical screw

sectional drawing to read rods with the Wild NK1

Explanation to rods reading of height with better elevation Wild NK1/N1

Check, if the bubble is brought to precise coincidence, use vertical screw.Beneath the horicontal Matelda read the next complete centimeter (345 cm) and in the cropped centimeter field you have to read (6 mm).After reading is taken (3,456 m), you always have to check if the dragonfly is still bring in coincidence.

Turning direction of the vertical srew to bring vial coincidence (view of the observer)


  Left beside the telescope eyepiece is the eyepiece to look after the dragonfly.The Ending from both blister half, is to collimate with turnnig the vertical screw in coincidence,that means ,that they close to one/single arc.The necessary turn mind of the vertical screw is to develop from the picture appear and clear cut arrow.

sectional drawing of NK-1: level bubble with the vertical screw



                               VV : vertical axis                F  : leveling screw
                         ZZ : telescope axis              Li : bubble level/ vial
                         LL : vial axis                        K : vertical screw
                           D : 2D-vial                         S  : direction tangent

 About the vertical screw (Tilting Level):

The telescope carrier and the telescope are not connected tightly. The telescope let itself in reality by slight tip over the vertical operatively fine-motion-screw, so called vertical screw,in the longitudinal direction. First you have to bring in the circular level with the leveling screws which are mount on the telescope carrier.With it stays the vertical revolution axis roughly plumb. For each reading on the level-rod you let the fixed bubble level/vial which is on the telescope with aid from the vertical screw bring in acute. This instrument is partienlarly qualified for taking precise single points, for example the fixed-point level.

Malte Weber und Marco Wöhe VT02
